HTTP2 Server Push for W3 Total Cache Minify plugin

HTTP2 Server Push is a new feature in HTTP/2 Protocol where server already sends files that are required to render a page.

It is basically done, by adding a Link Header to the page response of the loading page to Preload specific files.

Server Push is actually supported on only Web Servers that have enabled HTTP/2 Protocol, nowadays most web servers support HTTP/2 (Apache 2.4.17 and nginx 1.9.5 supports HTTP/2).

So if your web server supports HTTP/2 then you can server push files, but the web server does not automatically pushes files, because it is the application that has to tell which file to push in this case application is WordPress or W3 Total Cache Plugin.

Is W3 Total Cache Abandoned?

W3 Total Cache is an extremely popular plugin for WordPress where millions of people use it to Optimize and Speed up their website. But in the past few months there have been no updates to this awesome plugin (last Update was 5 months ago) as of writing of this post. Many users on the internet are already thinking this plugin is dead and is no longer supported.

Well, I read once on WPTavern that this Plugin is not yet abandoned by its Author. But it has been few months since then, yet no new updates for the plugin with new features as support to HTTP/2 Server push and other benefits of HTTP/2.

Server Push for Minify

I use W3 Total Cache for my various websites so I needed a way to use HTTP2 Server Push feature so that I can reduce the loading time of websites as important resources such as Stylesheets and JavaScripts will start to immediately download at the same time the page starts to load.

Whereas normally without server push, the browser initially downloads the page then starts parsing the HTML and then calls for resources it finds on the page. Which takes a long time or you can even say few seconds on big pages.

So I started tinkering with W3 Total Cache’s Minify plugin file to support Server Push for minified files.

To push minified files you need to add extra code in /wp-content/plugins/w3-total-cache/Minify_Plugin.php file.

  1. Open Minify_Plugin.php file in your favourite code editor.

  2. Go to line 273 and add the following code (refer):

    273
    274
    275
    276
    277
    278
    279
    280

    	 /**
    	 * HTTP2 Server push for CSS
    	 */
    	$pushURL[] = $this->minify_helpers->get_minify_url_for_files($files_to_minify, 'css'); // get CSS minified files URLS
    	$this->minify_helpers->http2_server_push($pushURL, 'style'); // push css files
    	/**
    	 * END HTTP2 Server push for CSS
    	 */

    /** * HTTP2 Server push for CSS */ $pushURL[] = $this->minify_helpers->get_minify_url_for_files($files_to_minify, 'css'); // get CSS minified files URLS $this->minify_helpers->http2_server_push($pushURL, 'style'); // push css files /** * END HTTP2 Server push for CSS */

  3. Afterwards go to line 373 and add the following code editor (refer) :

    373
    374
    375
    376
    377
    378
    379
    380
    381
    382
    383
    384
    385
    386
    387
    388
    389
    390
    391
    392
    393
    394
    395
    396
    397

    	/**
    	 * HTTP2 server push for manual minify
    	 */
    	if ( !$this->_config->get_boolean( 'minify.auto' ) ) {
    		$fileType = 'js';
    		$theme = $this->get_theme();
    		$template = $this->get_template();
    		$locations = array('include', 'include-body', 'include-footer');
    		$urls = array();
    		$cssURL = array();
    		/**
    		 * Get Minified Script URLs
    		 */
    		foreach ($locations as $location) {
    			$urls[]= $this->format_url_group($theme, $template, $location, $fileType);
    		}

    		$this->minify_helpers->http2_server_push($urls,'script'); // push script urls

    		$cssURL[] = $this->format_url_group($theme, $template, 'include', 'css'); // get minfied css urls
    		$this->minify_helpers->http2_server_push($cssURL,'style'); // push css urls
    	}
    	/**
    	 * END HTTP2 Server push for manual minify
    	 */

    /** * HTTP2 server push for manual minify */ if ( !$this->_config->get_boolean( 'minify.auto' ) ) { $fileType = 'js'; $theme = $this->get_theme(); $template = $this->get_template(); $locations = array('include', 'include-body', 'include-footer'); $urls = array(); $cssURL = array(); /** * Get Minified Script URLs */ foreach ($locations as $location) { $urls[]= $this->format_url_group($theme, $template, $location, $fileType); }$this->minify_helpers->http2_server_push($urls,'script'); // push script urls $cssURL[] = $this->format_url_group($theme, $template, 'include', 'css'); // get minfied css urls $this->minify_helpers->http2_server_push($cssURL,'style'); // push css urls } /** * END HTTP2 Server push for manual minify */

  4. then go to Line 1268 and add the following code (refer):

    1268
    1269
    1270
    1271
    1272
    1273
    1274
    1275
    1276
    1277
    1278
    1279
    1280
    1281

    	/**
    	 * HTTP2 Server Push
    	 */
    	function http2_server_push($urls,$as) {
    		foreach ($urls as $url) {
    			if($url) {
    		 $url = '//' === substr($url, 0, 2) ? preg_replace('/^\/\/([^\/]*)\//', '/', $url) : preg_replace('/^http(s)?:\/\/[^\/]*/', '', $url); // Make $url relative from absolute, so that Cloudflare has push resources itself
    		 header('Link: <'.$url.'>; rel=preload; as='.$as, false); // add Link header for server push
    		  }
    		} // end foreach
    	}
    	/**
    	 * END HTTP2 Server Push
    	 */

    /** * HTTP2 Server Push */ function http2_server_push($urls,$as) { foreach ($urls as $url) { if($url) { $url = '//' === substr($url, 0, 2) ? preg_replace('/^\/\/([^\/]*)\//', '/', $url) : preg_replace('/^http(s)?:\/\/[^\/]*/', '', $url); // Make $url relative from absolute, so that Cloudflare has push resources itself header('Link: <'.$url.'>; rel=preload; as='.$as, false); // add Link header for server push } } // end foreach } /** * END HTTP2 Server Push */

  5. Now lets add the final piece of code at line 1579 (refer):

    1579
    1580
    1581
    1582
    1583
    1584
    1585
    1586

    	/**
    	 * HTTP2 Server push for Scripts
    	 */
    	$scriptURL[] = $url;
    	$this->minify_helpers->http2_server_push($scriptURL,'script');
    	/**
    	 * END HTTP2 Server push for Scripts
    	 */

    /** * HTTP2 Server push for Scripts */ $scriptURL[] = $url; $this->minify_helpers->http2_server_push($scriptURL,'script'); /** * END HTTP2 Server push for Scripts */

  6. Just save the file.

    Check results and verify

    W3 Total Cache plugin will now server push the minified JavaScripts (.js) and Stylesheet (.css) files. To verify that just check the headers of a minified page.

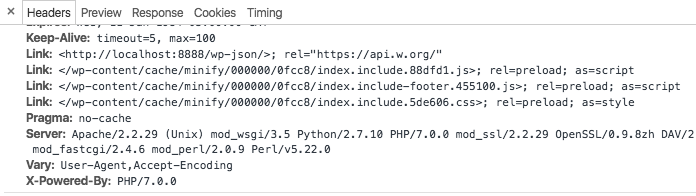

    Headers visible in Chrome DevTools Network Panel

    Headers visible in Chrome DevTools Network Panel

as you can see in the above image you can see Link headers with minified files url being sent to preload in the Response header.

if you are using CloudFlare then instead of seeing the resources in the Link Header you might see them in a special header called cf-h2-pushed which says that the files in it list have been pushed by CloudFlare so they remove the Link Header for the pushed resources.

cf-h2-pushed headers for Resources pushed by CloudFlare

cf-h2-pushed headers for Resources pushed by CloudFlare

With this you will notice your WordPress websites loading speed has become shorter and the pages loader quicker.

If you have any problem please leave a comment below and explain the problem you are encountering.

Please Note : Most of the Admins or Logged In users might not see benefit of server push. That is because by Default Minify in W3 Total Cache plugin is disabled for Logged in users.

Update 07/01/2017 : Updated the Code to work with latest W3 Total Cache plugin version 9.5.1

Update : W3 Total Cache version 9.5.2 comes with added HTTP/2 Server Push

Subscribe via Email

Share this:

  • Twitter
  • Facebook
  • Pocket
  • Print
  • WhatsApp
  • Email

Related

August 17, 2016 Ritesh Sanap Solutions, WordPress CloudFlare, wordpress

Comments

  1. nootropixdotcom says

    January 3, 2017 at 5:40 pm

    Please update this hack to work with the latest version of W3TC

    Reply
    • Ritesh Sanap says

      January 4, 2017 at 2:20 pm

      I m currently working on it, will update this page once I m done.

      Reply
    • Ritesh Sanap says

      January 7, 2017 at 1:03 pm

      I have updated the post to work with latest version of W3TC 9.5.1, please take a look

      Reply
  2. Mat says

    March 27, 2017 at 9:01 pm

    Now that the new version is out, what are the best settings for Wp3 Total Cache when using http2? Any tips on how to configure it? I assume some boxes should now be unchecked? Under Minify, I checked the server push options – what previous optimizations should be undone? Thanks!

    Reply
    • Ritesh Sanap says

      March 28, 2017 at 7:49 am

      there is no best “setting” in W3 Total Cache you just have to tinker it according to your needs and server specifications. And after enabling HTTP2 server push in W3 Total Cache you don’t need to uncheck any boxes in minify.
